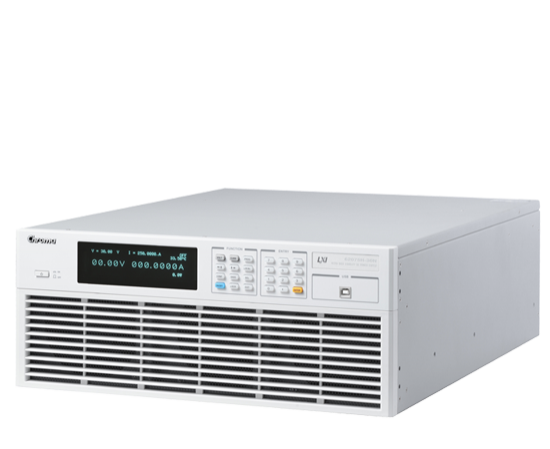

Ultra-High Stability DC Power Supply Model 62075H-30N

产品特色

• Power range: 7.5kW
• Voltage range: 0~30V
• Current range: 0~250A
• High power density (7.5KW in 4U)
• Easy Master/Slave parallel operation up to 30V/750A
• Easy Master/Slave series operation up to 60V/250A
• Current stability: 2.5mA(10ppm)
• High-resolution current programming & Measurement: 20bit DAC/24bit ADC
• Current Slew Rate Control
• Output current waveform digitizing
• OVP, Current Limit, Thermal protection
• Standard USB Interface
• Optional Ethernet/LXI interface
• Safety interlock & Remote inhibit control (I/P)

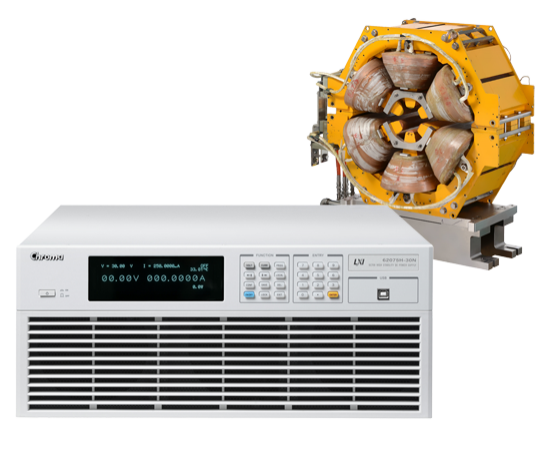

• Magnet power supply application
• CE Certified

产品介绍

Chroma's new 62075H-30N of ultra-high stability DC power supply offers many unique advantages for magnet power supply system in synchrotron application. These advantages include excellent current stability of 1.25mA/0.5 hour and 2.5mA/8 hour, extremely low current ripple of 2.5mA, current reproducible within 10mA, precision setting and readback of output current via 20 bit DAC/24 bit ADC.

The 62075H-30N output power has maximum 7.5kW/30V/250A power module designed with 4U height that can be connected easily as master or slave with three units to 22.5kW/30V/750A in parallel or two units to 15kW/60V/250A in series and operated as a standalone unit via system bus.

The 62075H-30N provides stable DC output cur rent sour ce and powe r for pre c i s ion measurement. It offers an advanced 250A/30V ultra high-stable ±10 ppm (current stability ±1.25 mA) with high effciency and high power factor in compliance with energy savings. In addition it has a 20 bit digital control with bright vacuum fluorescent display readout.

The 62075H-30N ultra-high stability power supply is very easy to operate from either the front panel keypad or the remote controller via USB (standard) and Ethernet/LXI (optional). Its compact size with 4U only can be used on a bench or installed in a standard rack without any difficulty.

The features of the 62075H-30N includes current mode with dual loops control. It is able to provide a stable and fast output response providing excellent protection for different load variations.

The self-diagnosis routine and full protections against voltage phase loss, over/under voltage at input, over voltage/current at output, over power, over temperature, fan fail and remote inhibit ensure the quality and reliability for even the most demanding magnet power supply system in synchrotron.
